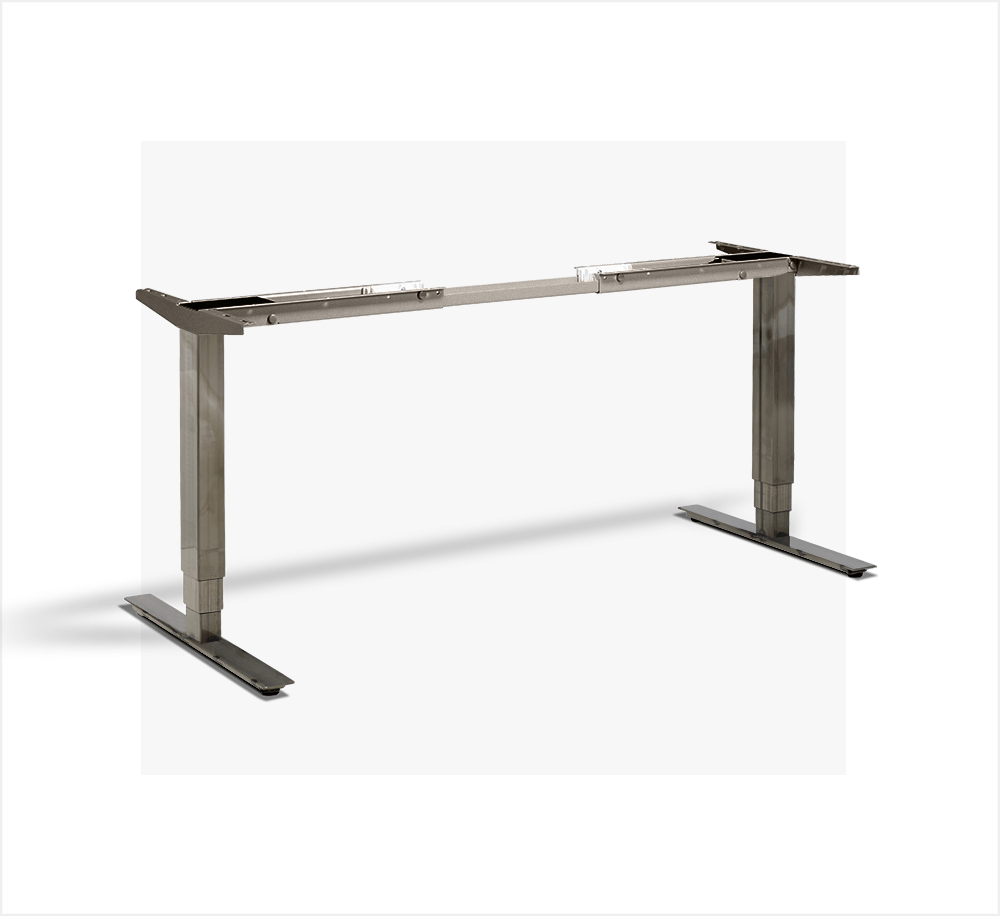

HD2 Leg Frame

Secure_Checkout

HADO offer a small selection of our height adjustable desks as frame only in a variety of frame finishes to allow customers to purchase their own desk tops.

All height adjustable leg frames are supplied with wood screws as standard to enable you to fit the leg frame to your own desk top.

We recommend minimum size desk top for all frames of 1200mm x 700mm deep and maximum desk top size 1800mm wide x 800mm deep and minimum desk top thickness of 25mm. (warranty will be voided for our leg frames if the desk top exceeds the minimum or maximum desk top sizes and minimum desk top thickness recommended)

If a solid wood surface is purchased you may need to consider pre-drilling the top before using the wood screws provided, screws supplied are for fixing into 25mm MFC (Melamine Faced Chipboard).

A standard 1200 x 700 x 25mm thick MFC desk top weighs 14.28kg (17m2/kg) please bear this in mind as the leg frames will lift maximum weight minus the desktop weight depending on the leg frame purchased from HADO.

All leg frame only purchases are backed by a 5-year warranty.

Installation manuals are included within the leg frame cartons accordingly.

Specification

  • 5 Year manufacturers guarantee
  • Dual motor standing desk system

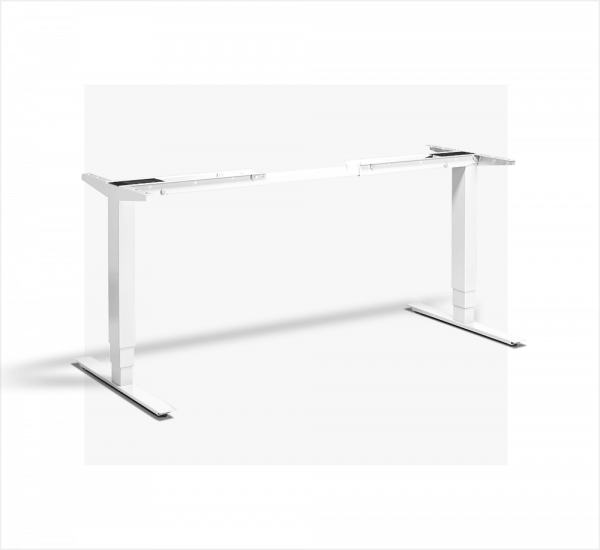

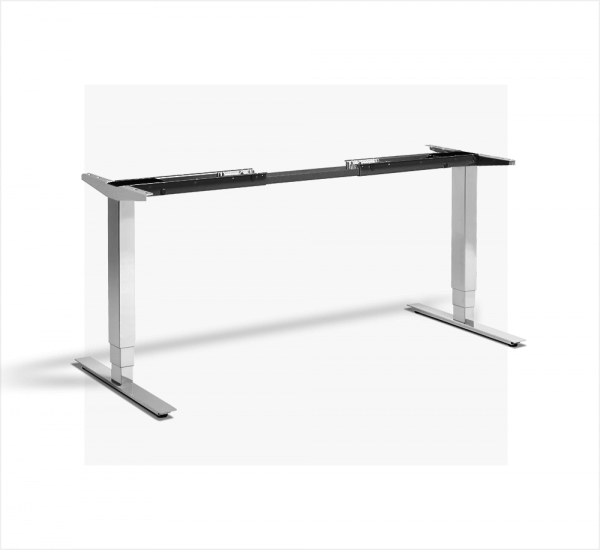

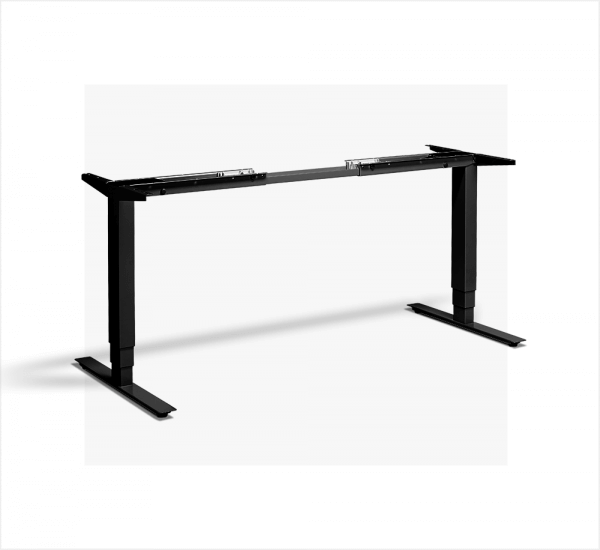

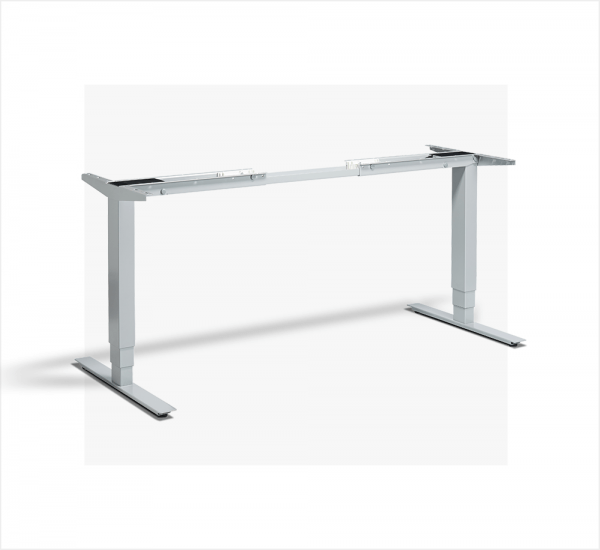

  • In stock in Black, White, Silver, Anthracite & Raw Steel
  • 120 KG Max load weight
  • Height adjustment (excl 25mm thick top) 600mm – 1260mm
  • Extendable high grade steel frame
  • Soft touch up-down switch

Product Details

Guarantee5 Years
Frame Width Adjustment1150mm-1740mm
Side Supports (Brackets)580mm
Leg Depth690mm
Load Capacity120kg
Frame Weight32kg
Life10,000 cycles at full rated load
Height Range (Stroke)600mm – 1260mm
Voltage230V AC Input, 24V DC operation
Speed40mm per second
Standby Power<0.3 W
Max Operational Power300W
Overload ProtectionYes
Thermal ProtectionYes
Anti CollisionYes (Solid Surface)
Duty Cycle10% – 1min ON, 9min OFF
Noise Level<42 dB
CE ComplianceMachine Directive 2006/42/EC
EMC Directive 2014/30EU
